Home - Products - Union - One Piece Fitting - Union - One Piece Fitting - 15611PK
Series:
Model: 15611PK
Description:

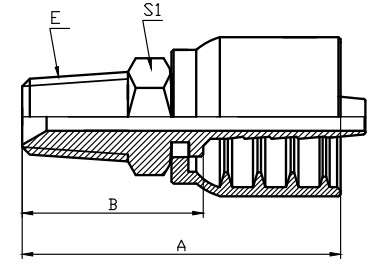

| PART NO. | E (THREAD E) | HOSE BORE (DN) | HOSE BORE (DASH) | DIMENSIONS (A) | DIMENSIONS (B) | DIMENSIONS (S1) |
| 15611-04-04PK | Z1/4"X18 | 6 | 4 | 48.5 | 28.9 | 14 |
| 15611-04-06PK | Z1/4"X18 | 10 | 6 | 52 | 30 | 17 |
| 15611-06-06PK | Z3/8"X18 | 10 | 6 | 53.5 | 31.5 | 19 |
| 15611-06-08PK | Z3/8"X18 | 12 | 8 | 59 | 30.5 | 19 |
| 15611-08-08PK | Z3/8"X18 | 6 | 4 | 53.5 | 33.9 | 22 |
| 15611-08-10PK | Z1/2"X14 | 10 | 6 | 57.5 | 35.5 | 22 |
| 15611-12-12PK | Z1/2"X14 | 12 | 8 | 63 | 34.5 | 22 |
| 15611-08-04PK | Z1/2"X14 | 16 | 10 | 71 | 33.9 | 22 |
| 15611-08-06PK | Z1/2"X14 | 20 | 12 | 73.5 | 33.9 | 27 |
| 15611-16-16PK | Z3/4"X14 | 25 | 16 | 90.5 | 45.5 | 36 |
| 15611-20-20PK | Z1"X11.5 | 32 | 20 | 95.8 | 48.8 | 45 |
| 15611-24-24PK | Z1-1/4"X11.5 | 40 | 24 | 91 | 52.6 | 50 |
| 15611-32-32PK | Z1-1/2"X11.5 | 50 | 32 | 103 | 55.8 | 64 |
| 15611-06-04PK | Z2"X11.5 | 6 | 4 | 49 | 29.4 | 19 |
