Home - Products - Tube Clamp - Flat Steel Tube Clamp - Flat Steel Tube Clamp PFSTC
Series:

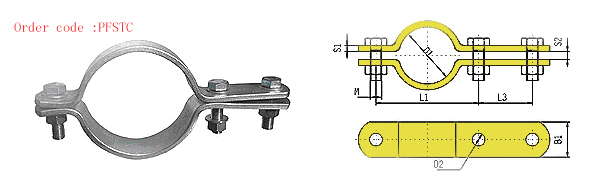

Flat Steel Tube Clamp DIN3015 Model: Flat Steel Tube Clamp PFSTC
flat steel tube clamp: 4 models for choice
Description:
Hydraulic pipe/tube clamps
DIN 3015 clamps
1.Structure: assembly including cover plate, rail nut, clamp body,hexagon bolts
2.Material:
Bolts: Carbon steel(zinc coated/phospated)/stainless steel
Cover plate: Carbon steel(zinc coated/phosphated)/stainless steel
Welding plate: Carbon steel(zinc coated/phosphated)/stainless steel
Clamp body: Polypropylene(PP)/Polyamide(PA)/Aluminium(AL)
3.Working Temperature:
PP -30 degree up to +90 degree in dark green colour
PA -40 degree up to +120 degree in dark colour
flat steel tube clamp: 4 models for choice
 | ||||||||||
| clamp D1 | nominal width | L1 | L2 | L3 | S1 | S2 | D2 | B1 | hexagon head nut | |
| mm | Out inch | |||||||||
| 20 | 15 | 57 | 15 | 46 | 5 | 7 | 12 | 30 | M10×30 M10 | |
| 22 | 15 | 59 | ||||||||
| 25 | 20 | 62 | ||||||||
| 27 | 20 | 3/4 | 66 | |||||||
| 30 | 25 | 68 | ||||||||
| 34 | 25 | 1 | 72 | |||||||
| 38 | 32 | 76 | ||||||||
| 43 | 32 | 11/4 | 82 | |||||||
| 45 | 40 | 84 | ||||||||
| 49 | 40 | 11/2 | 88 | |||||||
| 57 | 50 | 104 | 18 | 54 | 6 | 9 | 14 | 40 | M12×35 M12 | |
| 61 | 50 | 2 | 108 | |||||||
| 77 | 65 | 21-2 | 122 | |||||||
| 89 | 80 | 3 | 136 | |||||||
| 108 | 100 | 172 | 24 | 70 | 8 | 11 | 18 | 50 | M16×45 M16 | |
| 115 | 100 | 4 | 178 | |||||||
| 133 | 125 | 196 | ||||||||
| 140 | 125 | 204 | ||||||||
| 159 | 150 | 222 | ||||||||
| 169 | 150 | 232 | ||||||||
| 194 | 175 | 258 | ||||||||
| 216 | 200 | 280 | ||||||||
| 220 | 200 | 284 | ||||||||
| 267 | 250 | 342 | 30 | 86 | 8 | 14 | 23 | 60 | M20×50 M20 | |
| 273 | 250 | 348 | ||||||||
| 319 | 300 | 392 | ||||||||
| 324 | 300 | 398 | ||||||||
| 368 | 350 | 444 | ||||||||
| 407 | 400 | 498 | 36 | 104 | 10 | 18 | 27 | 70 | M24×60 M24 | |
| 419 | 400 | 510 | ||||||||
| 521 | 500 | 614 | ||||||||
