Home - Products - Hydraulic Machine - Nut crimping machine - PH-LCR-B152
Series:

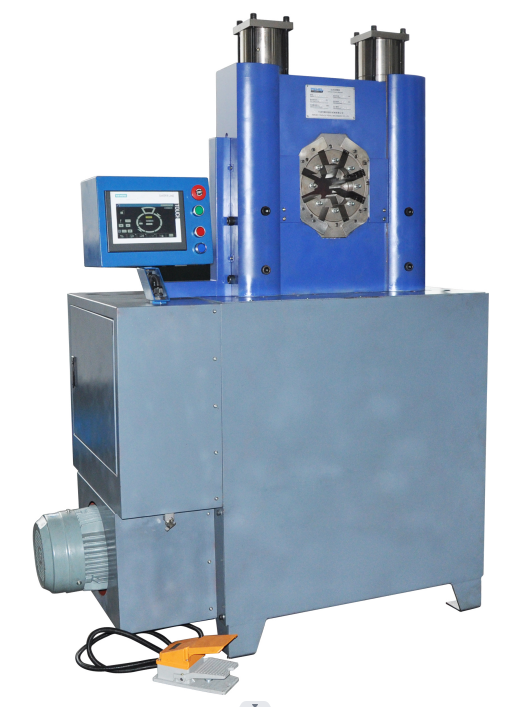

Model: PH-LCR-B152
Description:
| TECHNICAL SPECIFICATIONS | |
| Max Pressure | P=31.5MPa |
| Electromotor Power | 4.6KW |
| Open Mould Speed | 28mm/s |
| Close Mould Speed | 23mm/s |
| Compress Speed | 1.3mm/s |
| Crimping Force (KN/T) | 3100KN |
| Voltage | 380V |
| Total Run | 70mm |
| Industrial Pipe, Hydraulic Pipe | 4"??2-1/2",2"-6S |
| Opening without Mould | 215mm |
| Min Mold Closure(without mould) | 145mm |
| Max Mould Width | 126mm |
| Max Height of Mould Cneter | 1207mm |
| Weight | 1600KG(Including dies) |
| Dimension | 1300*600*1700??Net Measurement?? 1350*660*1800??Measurement With Packaging) |
| Dies supplied?? ??, L) | ??14 ??17 ??20 ??24,L65 |
| ??28??32??36??40 L80 /??44 ??47??50,L100 | |
| ??54??57??62??67??71??84,L118 |
